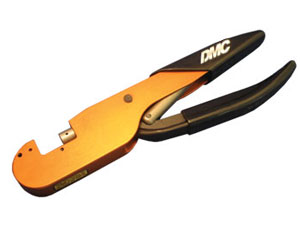

Hand Tools l Open Frame Crimp Tools M22520/5-01 (HX4) / M22520/10-01 (HX3)
 |
The DMC HX4 and HX3 series crimp tools feature a system of interchangeable dies which eliminate the need of separate fixed die crimp tools for each and every different application. Many maintenance and manufacturing concerns have standarized on one of these models, thus eliminating the cost associated with maintaining and calibrating bulky inventories of single purpose tools. |
||||
DIE P/N |
DIE CLOSURE DIMENSIONS |
|||||
DMC P/N |
MILITARY P/N |
NATIONALSTOCK NO.N.S.N. |
AHEX. |
LENGTH |
BHEX. |
LENGTH |
HX4 |
M22520/5-01 |
5120-01-335-8575 |
CrimpToolFrame |
- |
- |
- |
Y200P |
M22520/5-02 |
5120-01-335-8244 |
.091 |
.090 |
.068 |
.270 |
Y196 |
M22520/5-03 |
5120-01-335-8245 |
.128 |
.325 |
.105 |
.325 |
Y152 |
M22520/5-04 |
5120-01-335-8246 |
.138 |
.090 |
.118 |
.270 |
Y197 |
M22520/5-05 |
5120-01-335-8247 |
.213 |
.325 |
.178 |
.325 |
Y203 |
M22520/5-06 |
5120-01-335-8248 |
.128 |
.094 |
- |
- |
Y195 |
M22520/5-07 |
5120-01-335-8249 |
.255 |
.325 |
- |
- |
Y215 |
M22520/5-08 |
5120-01-335-8250 |
.128 |
.375 |
- |
- |
Y204P |
M22520/5-09 |
5120-01-335-8251 |
.178 |
.400 |
.068 |
.093 |
Y189 |
M22520/5-10 |
5120-01-335-8252 |
.160 |
.400 |
- |
- |
Y205P |
M22520/5-11 |
5120-01-335-8253 |
.213 |
.400 |
.068 |
.093 |
Y206P |
M22520/5-13 |
5120-01-335-8254 |
.255 |
.400 |
.068 |
.093 |
Y207P |
M22520/5-15 |
5120-01-335-8255 |
.263 |
.400 |
.068 |
.093 |
Y193 |
M22520/5-17 |
5120-01-335-8256 |
.118 |
.375 |
- |
- |
Y142 |
M22520/5-19 |
5120-01-335-8257 |
.255 |
.400 |
.213 |
.400 |
Y149 |
M22520/5-21 |
5120-01-335-8258 |
.475 |
.400 |
- |
- |
Y145 |
M22520/5-23 |
5120-01-335-8259 |
.384 |
.400 |
- |
- |
Y110P |
M22520/5-25 |
5120-01-335-8260 |
.429 |
.400 |
.100 |
.120 |
Y151 |
M22520/5-27 |
5120-01-335-8261 |
.532 |
.400 |
- |
- |
Y109P |
M22520/5-29 |
5120-01-335-8262 |
.324 |
.400 |
.100 |
.120 |
Y150 |
M22520/5-31 |
5120-01-335-8263 |
.501 |
.400 |
- |
- |
Y136 |
M22520/5-33 |
5120-01-335-8264 |
.343 |
.400 |
.105 |
.400 |
Y137 |
M22520/5-35 |
5120-01-335-8265 |
.324 |
.400 |
.128 |
.400 |
Y138 |
M22520/5-37 |
5120-01-335-8266 |
.314 |
.400 |
.151 |
.400 |
Y139 |
M22520/5-39 |
5120-01-335-8267 |
.309 |
.400 |
.160 |
.400 |
Y140 |
M22520/5-41 |
5120-01-335-8268 |
.290 |
.400 |
.178 |
.400 |
Y141 |
M22520/5-43 |
5120-01-335-8269 |
.268 |
.400 |
.197 |
.400 |
Y143 |
M22520/5-45 |
5120-01-335-8270 |
.231 |
.400 |
.218 |
.400 |
Y144 |
M22520/5-47 |
5120-01-335-8271 |
.359 |
.400 |
- |
- |
Y146 |
M22520/5-49 |
5120-01-335-8292 |
.401 |
.400 |
- |
- |
Y147 |
M22520/5-51 |
5120-01-335-8293 |
.431 |
.400 |
- |
- |
Y148 |
M22520/5-53 |
5120-01-335-8294 |
.454 |
.400 |
- |
- |
Y102 |
M22520/5-55 |
5120-01-335-8295 |
.324 |
.400 |
- |
- |
Y209P |
M22520/5-57 |
5120-01-335-8296 |
.213 |
.400 |
.100 |
.120 |
DIE P/N |
DIE CLOSURE DIMENSIONS |
|||||
DMC P/N |
MILITARY P/N |
NATIONAL STOCK NO.N.S.N. |
AHEX. |
LENGTH |
BHEX. |
LENGTH |
Y208P |
M22520/5-59 |
5120-01-335-8297 |
.255 |
.400 |
.100 |
.120 |
Y178 |
M22520/5-61 |
5120-01-335-8298 |
.429 |
.400 |
||
Y314P |
M22520/5-63 |
5120-01-335-8299 |
.263 |
.400 |
.091 |
.090 |
Y501 |
M22520/5-100 |
5120-01-335-8300 |
Pre-InsulatedTerminalCrimp26-10AWG |
|||
Y527 |
M22520/5-101 |
5120-01-335-8301 |
Pre-InsulatedSpliceCrimp26-20AWG |
|||
Y539 |
M22520/5-102 |
5120-01-335-8302 |
SpliceCrimp12-16AWG |
|||
Y540 |
M22520/5-103 |
5120-01-335-8303 |
SpliceCrimp16-26AWG |
|||
DIE P/N |
DIE CLOSURE DIMENSIONS |
|||||
DMC P/N |
MILITARY P/N |
NATIONAL STOCK NO.N.S.N. |
A HEX. |
LENGTH |
B HEX. |
LENGTH |
HX3 |
M22520/10-01 |
5120-01-335-8582 |
CrimpToolFrame
|
- |
- |
- |
X115S |
M22520/10-02 |
5120-01-335-8304 |
.091 |
.090 |
.068 |
.270 |
X103 |
M22520/10-03 |
5120-01-335-8305 |
.255 |
.325 |
- |
- |
X123 |
M22520/10-04 |
5120-01-335-8277 |
.138 |
.090 |
.118 |
.270 |
X101 |
M22520/10-05 |
5120-01-335-8278 |
.128 |
.325 |
.105 |
.325 |
X125 |
M22520/10-06 |
5120-01-335-8279 |
.160 |
.400 |
- |
- |
X102 |
M22520/10-07 |
5120-01-335-8280 |
.213 |
.325 |
.178 |
.325 |
X140 |
M22520/10-08 |
5120-01-335-8281 |
.128 |
.093 |
- |
- |
X129 |
M22520/10-09 |
5120-01-335-8282 |
.118 |
.327 |
- |
- |
X136 |
M22520/10-10 |
5120-01-335-8283 |
.128 |
.375 |
- |
- |
X225 |
M22520/10-11 |
5120-01-335-8284 |
.105 |
.400 |
- |
- |
X118 |
M22520/10-13 |
5120-01-335-8285 |
.128 |
.400 |
- |
- |
X226 |
M22520/10-15 |
5120-01-335-8286 |
.151 |
.400 |
- |
- |
X149 |
M22520/10-17 |
5120-01-335-8287 |
.178 |
.400 |
- |
- |
X147 |
M22520/10-19 |
5120-01-335-8288 |
.197 |
.400 |
- |
- |
X144 |
M22520/10-21 |
5120-01-335-8289 |
.213 |
.400 |
- |
- |
X155 |
M22520/10-23 |
5120-01-335-8290 |
.218 |
.400 |
- |
- |
X156 |
M22520/10-25 |
- |
.231 |
.400 |
- |
- |
X187 |
M22520/10-27 |
5120-01-335-8291 |
.255 |
.400 |
- |
- |
X515 |
M22520/10-100 |
5120-01-335-8272 |
Terminal/SpliceCrimp12-10AWG
|
|||
X511 |
M22520/10-101 |
5120-01-335-8273 |
Terminal/SpliceCrimp26-14AWG
|
|||
X525 |
M22520/10-102 |
5120-01-335-8274 |
Terminal/SpliceCrimp26-20AWG
|
|||
X527 |
M22520/10-103 |
5120-01-335-8275 |
SpliceCrimp16-12AWG
|
|||
X528 |
M22520/10-104 |
5120-01-335-8276 |
SpliceCrimp26-16AWG
|
|||
